AVAILABLE OPTIONS
- Capacity available from 23 cfm to 135 cfm
- Non-standard voltages: all models are available with V 230/1/60 or V
- Connections: all models are available with BPS connections.
- Certifications: all models are available with UL and CSA.
- Microprocessor to ensure stable dew point
- Drains available: Automatic timed drain
STANDARD REFERENCE CONDITIONS
- Working pressure: 7 bar (16 bar max )
- Dew point: 3 °C to 10 °C (-22 atm.)
- Ambient temperature: 32 °C (45° max)
- Inlet air temperature: 80 °C (90° max)
DESCRIPT ION

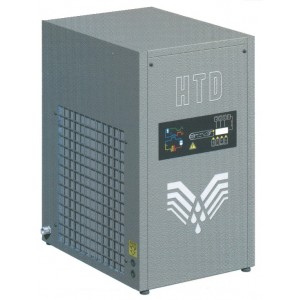

- High-temperature inlet air dryer (up to 90°C). This special dryers enclose an after cooler and a filter/ceramic separator. In this way we achieve remarkable space saving and lower the overall pressure drop, without mentioning the time saving for the assembly. A single condensate drain is used for the entire package
