HIGH VOLTAGE INSULATION RUBBER MAT

Our Switchboard matting / high voltage insulation rubber was tested according to TNB technical specification :

A) ( IEC 61111:2009 ) BS EN 61111 Clause 5.6.4.3 , Voltage Withstand Test

Product Characteristic :-

1) Material : NATURAL RUBBER ( NR ) BASE POLYMER

2) Model / Brand Name : GS-SL , Withstood 20kV ( Class 1 ) , 3mm Nominal Thickness , BLACK Colour with TNBR QATS Test Certificate No.

3) Model / Brand Name : GS-SM , Withstood 30kV ( Class 2 ) , 5mm Nominal Thickness , BLACK Colour with TNBR QATS Test Certificate No.

4) Model / Brand Name : GS-SMG , Withstood 40kV ( Class 3 ) , 5mm Nominal Thickness , GREY Colour with TNBR QATS Test Certificate No.

5) Surface finishing : with anti slip Corrugated / Diamond plate surface to provide safe working

6) Specific gravity :  1.50 g/cm³

7) Hardness : 60 ± 5 Shore A

8) Elongation : Min  250 %

9) Tensile Strength : Min  5 MPa

10) OUR available Dimension :

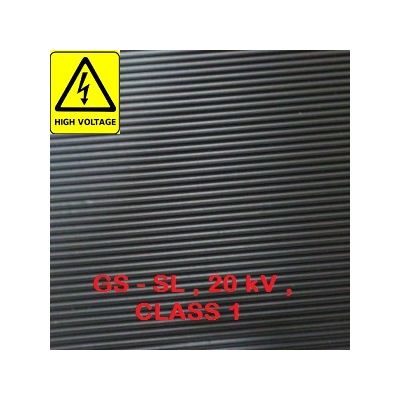

* I) Material Type : Natural Rubber ( NR ) base  polymer with anti slip Corrugated

 BS EN 61111 : 2009 Class 1 ( Withstood 20kV ) , GS-SL

A) 3mm Tk x 915 mm (0.915 m or 3 ft ) Width x 10,000mm ( 10 m ) Length / roll ( ~ 30kgs / pc )

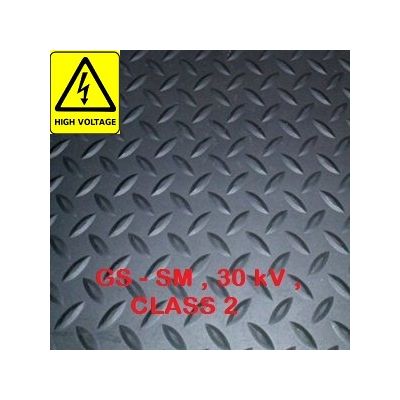

* II) Material Type : Natural Rubber ( NR ) base  polymer with anti slip diamond plate

 BS EN 61111 : 2009 Class 2 ( Withstood 30kV ) , GS-SM

A) 5mm Tk x 1,000mm (1 m ) Width x 6,000mm ( 6 m ) Length / roll ( ~ 36kgs / pc )

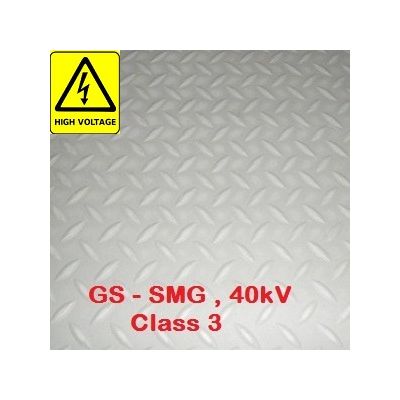

* III) Material Type : Natural Rubber ( NR ) base  polymer with anti slip diamond plate

 BS EN 61111 : 2009 Class 3 ( Withstood 40kV ) , GS-SMG

A) 5mm Tk x 1,000mm (1 m ) Width x 6,000mm ( 6 m ) Length / roll ( ~ 36kgs / pc )
