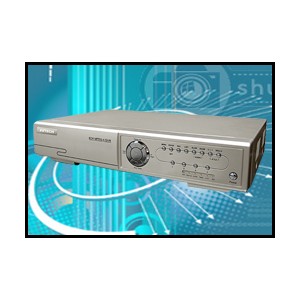

| MODEL |
AVC760
|
| Video System |
NTSC / PAL (switchable)
|
| Video Compression Format |
Frame:MPEG ; CIF: MPEG4
|
| Video Input |
4 Channels. COmposite video signal 1 Vp-p 75Ω BNC
|
| Video Loop Out |
4 channels. Composite video signal 1 Vp-p 75Ω BNC
|
| Video Output |
Main Monitor Output: Composite video signal 1 Vp-p 75Ω BNC
Call Monitor Output: Composite video signal 1 Vp-p 75Ω BNC
|
| Maximum Recodring Rate |
Frame: 720x480 pixels with 30IPS / 720x576 pixels with 25 IPS
CIF: 352x240 pixels with 12 IPS / 352x288 pixels with 100 IPS
|
| Adjustable Recording Speed |
Frame: 30, 15, 7, 3 IPS / 25, 12, 6, 3 IPS
CIF: 120, 60, 30, 15 IPS / 100, 50, 25, 12 IPS
|
| Image quality Setting |
Best, High, Normal and Basic
|
| Hard Disk Storage |
IDE type, ATA66, supported HDD*1, support HDD capacity over 400gb
|
| Hdd Quick Cleaning |
Quick clean up the "index system" of the recorded files. 250GB under 2 seconds
|
| Recording Mode |
Manual / Timer / Motion / Alarm / Remote
|
| Refresh Rate |
120 IPS for NSTC, 100 IPS for PAL
|
| Audio I/O |
1audio input, 1 audio output (Mono)
|
| Motion detection area |
16 x 12 grids per camera for all channels
|
| Pre-alarm recording |
Yes(8MB)
|
| Back-up Device |
Network remote backup
|
| Web transmitting/ compression format |
Motion JPEG
|
| Ethernet |
10/100 Base-T, support remote control and live view via ethernet
|
| Web Interface |
Support licensed software AP and IE browser
|
| Remote Alarm Notification |
E-mail images, and upload images to FTP site's specific acount
|
| Network Connection |
Support TCP/IP, PPPoE, DhcP, and DDNS funtion
|
| PTZ control |
Support PELCO-D protocol
|
| Dwell Time (sequantial Channel Switch) |
Programmable with adjustable dwell time
|
| Alarm I/O |
4 inputs, 1 output
|
| Digital Zoom |
2x didtal zoom (live mode)
|
| Key Lock |
Yes
|
| Video loss detection |
Yes
|
| Camera Title |
Supports up to 6 letters
|
| Video Adjustable |
Hue/ Color / Contrast / Brightness
|
| Date Display Format |
YY/MM/DD, DD/MM/YY, MM/DD/YY, and off
|
| Power source |
DC 19V
|
| Power Consumption |
<42W
|
| Operating temperature |
10°C ~ 40°C (50°F~ 104°F)
|
| Dimension (mm) |
343mm(W) x 59mm(H) x 223mm(D)
|
| System Recovery |
System auto recovery after power reconnected
|
| Optional Peropheral |
VGA converter
|
