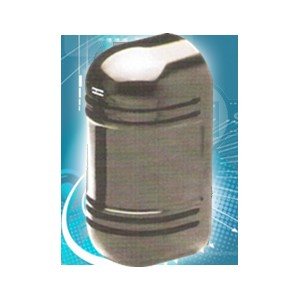

Photoelectric Beam Motion Detectors

ABT - 30

30 m

0.9 m

ABT - 60

60 m

1.9 m

ABT - 80

80 m

2.4 m

ABT - 100

100 m

3.0 m

PROTECTION DISTANCE

OUTDOOR: 100m
INDOOR: 300m

OUTDOOR: 80m
INDOOR: 240m

OUTDOOR: 60m
INDOOR: 180m

OUTDOOR: 30m
INDOOR: 90m

INFRARED BEAM

2 BEAMS







DETECTION METHOD

SIMULTANEOUS CUTOFF 2 BEAMS







LIGHT SOURCE

INFRARED LED







RESPONSE TIME

50 - 700 msec







ALARM SIGNAL

FORM 'C' (SRDT) RELAY CONTACTS
RATING : 0.5A MAX AT 30 VAC, DC







SUPPLY VOLTAGE

DC 10.5 - 28V







CURRENT CONSUMPTION

50 mA

50 mA

40 mA

35 mA

TEMPERATURE RANGE

-14ºF to +131ºF (-25ºC to +55ºC)







DIMENSIONS

REFERENCE TO DIAGRAM









TAMPER OUTPUT

FORM 'B' (SPST) RELAY CONTACTS







OPTICAL AXIS HORIZONTAL ADJUSTMENT

± 90º







OPTICAL AXIS VERTICAL ADJUSTMENT

± 10º







AIMING MEANS

VIEWFINDER WITH PEEP WINDOW







MOISTURE/FROST PROTECTION

SLIT TYPE COVER







ADDITIONAL FEATURES

ALIGNMENT LED AND MONITOR JACK







MATERIALS

ABS PLASTIC







WEIGHT

300g (TRANSMITTER AND RECEIVER)
