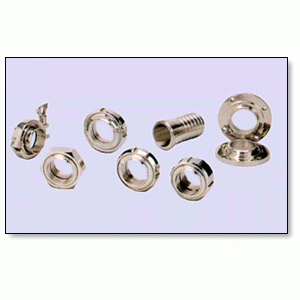

IDF Unions |
|
Hex Nut (mm) |
SIZE |
A |
B |
1" |
46 |
30 |
1-½" |
60 |
30 |
2" |
75 |
30 |
2-½" |
90 |
30 |
3" |
105 |
30 |
4" |
133 |
35 |
|
|
|
|
Weld Liner (mm) |
SIZE |
A |
B |
1" |
33.8 |
21.5 |
1-½" |
47.0 |
21.5 |
2" |
60.5 |
21.5 |
2-½" |
74.0 |
21.5 |
3" |
87.5 |
21.5 |
4" |
120.6 |
30 |
|
|
|
|
Expanding Liner (mm) |
SIZE |
A |
B |
C |
1" |
17.0 |
25.5 |
33.5 |
1-½" |
19.5 |
38.2 |
47.0 |
2" |
19.5 |
50.9 |
60.5 |
2-½" |
25.0 |
63.6 |
74.0 |
3" |
30.0 |
76.3 |
74.0 |
|
|
|
|
Weld Male (mm) |
SIZE |
A |
B |
1" |
37.1 |
21.5 |
1-½" |
50.7 |
21.5 |
2" |
64.2 |
21.5 |
2-½" |
77.7 |
21.5 |
3" |
91.2 |
21.5 |
4" |
125.9 |
30 |
|
|
|
DIN 11851 Unions |
|
Slotted Nut (mm) |
SIZE |
A |
B |
C |
D |
¼" |
18 |
38 |
28x1/8" |
19 |
½" |
18 |
44 |
34x1/8" |
25 |
¾" |
21 |
54 |
44x1/6" |
31 |
1 |
21 |
63 |
52x1/6" |
36 |
1-¼ |
21 |
70 |
58x1/6" |
42 |
1-½" |
21 |
78 |
65x1/6" |
49 |
2" |
22 |
92 |
78x1/6" |
62 |
2-½" |
25 |
112 |
95x1/6" |
80 |
3" |
30 |
127 |
110x1/4" |
94 |
4" |
31 |
148 |
130x1/4" |
115 |
|
|
|
|
Weld Liner (mm) |
SIZE |
A |
B |
C |
¼" |
17 |
22 |
15 |
½" |
17 |
28 |
21 |
¾" |
18 |
36 |
25 |
1 |
22 |
44 |
31 |
1-¼ |
25 |
50 |
37 |
1-½" |
26 |
56 |
43 |
2" |
28 |
68 |
55 |
2-½" |
32 |
86 |
72 |
3" |
37 |
100 |
87 |
4" |
44 |
121 |
106 |
|
|
|
|
Clamp Ferrule (mm) |
SIZE |
A |
B |
¼" |
25 |
13 |
½" |
25 |
19 |
¾" |
25 |
23 |
1 |
28.6 |
29 |
1-¼ |
28.6 |
34 |
1-½" |
28.6 |
40 |
2" |
28.6 |
52 |
2-½" |
28.6 |
70 |
3" |
28.6 |
85 |
4" |
28.6 |
104 |
|
|
|
|
Expanding Liner (mm) |
SIZE |
A |
B |
C |
D |
E |
¼" |
17 |
12 |
6 |
12.2 |
22 |
½" |
17 |
12 |
6 |
18.2 |
28 |
¾" |
18 |
12 |
8 |
22.2 |
36 |
1 |
22 |
15 |
10 |
28.2 |
44 |
1-¼ |
25 |
18 |
10 |
34.2 |
50 |
1-½" |
26 |
20 |
10 |
40.2 |
56 |
2" |
28 |
22 |
11 |
52.2 |
68 |
2-½" |
32 |
25 |
12 |
70.3 |
86 |
3" |
37 |
28 |
12 |
85.3 |
100 |
4" |
44 |
35 |
15 |
104.3 |
121 |
|
|
|
SMS Unions |
|
Slotted Nut (mm) |
SIZE |
A |
B |
C |
D |
1 |
51 |
20 |
40x1/8 |
32 |
1-¼ |
60 |
22 |
48x1/8 |
40 |
1-½" |
74 |
25 |
60x1/8 |
48 |
2" |
84 |
26 |
70x1/8 |
60.5 |
2-½" |
100 |
30 |
85x1/8 |
74 |
3" |
114 |
32 |
98x1/8 |
87 |
4" |
154 |
45 |
132x1/8 |
117 |
|
|
|
|
Short Weld Ferrule (mm) |
SIZE |
A |
B |
C |
1" |
35.5 |
8 |
25.4 |
1-¼" |
43.5 |
8 |
31.8 |
1-½" |
55 |
9 |
38.1 |
2" |
65 |
9 |
50.8 |
2-½" |
80 |
9 |
63.5 |
3" |
93 |
10 |
76.2 |
4" |
127 |
12 |
101.6 |
|
|
|
|
Weld Ferrule (mm) |
SIZE |
A |
B |
C |
1" |
35.5 |
17 |
25.4 |
1-¼" |
43.5 |
17 |
31.8 |
1-½" |
55 |
20 |
38.1 |
2" |
65 |
20 |
50.8 |
2-½" |
80 |
25 |
63.5 |
3" |
93 |
30 |
76.2 |
4" |
127 |
35 |
101.6 |
|
|
|
|
