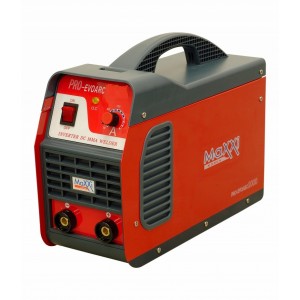

PRO-EVOARC 1600
The Inverter DC Stick welding power source
The PRO-EVOARC1600 is a Heavy Duty stick welder has a broad welding ampere range of 20- 160amp. It designed in single phase (230volt), high performance, portable, more reliable that you can take to the most demanding job sites.
With Advance features of Lift TIG Start suitable , Constant Arc Control designed for Stick welding of steel and others DC weld able materials.
Dynaweld advantages · Advanced inverter technology for superior arc performance.
· Lightweight at 8gs(17.5lbs), rugged package for ultimate portability and durability.
· Over load protection for long life of the components.
· CE standard.
· Backed by One year Dynaweld manufacturing warranty.
Processes Stick Welding
Scratch start DC TIG Welding
Specification Rated Input voltage: 220vot ±10%, 1 phase
Rated Input 5.3Kw
Rated Input Current 24.3A
Input Voltage Frequency 50/ 60Hz
Rated Output Current 30 – 160A
Rated Output Voltage 26.4Vdc
Open Circuit Voltage 80Vdc
Duty Cycle 60%
Efficiency 85%
Power Factor 0.93
Insulation Class IP21
Dimension (mm) 375 x 155 x 295
Weight 8Kgs
Weld able Electrode Size 2.0 – 3.2mm
Products Code EVO-ARC1600
|
