PVC Mifare 4K S70 card/ Mifare 4K rfid smart card

Detailed Product Description

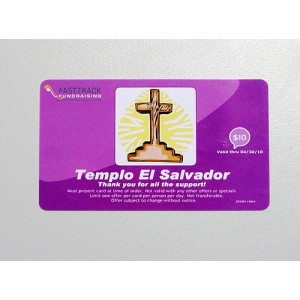

Printing PVC Mifare 4K S70 card

1. quick read

2. durable

3. stable

4. widely use.

Printing PVC Mifare 4K S70 card

Mifare 4K rfid smart card is accepted as the Market-leading technology ISO14443A. Mifare 4k is a great solution for E-ticket, payment, hotels, access control and time attendance systems.

Mifare 4K S70 smart card is widely used in the secure RFID applications. The 4KByte of EEPROM is configured into 32 sectors, so one single card can be applied for multi- applications.

We supply blank mifare 4k smart cards and pre-printed cards.

Product application

E-ticket

Payment

Hotel key lock

Access control

Time attendance system

Description

Chip: Mifare 4K S70 (NXP original)

Function: Read/write (protected by password)

Memory size: 4K-Byte EEPROM (32 sectors)

Frequency: 13.56MHz

RF Protocol: ISO14443A

Key features

Dimensions: 86 x 54mm

Thickness: 0.84mm

Material: PVC, PET

Surface: lamination (gloss/mate)

Working frequency: 13.56MHz

Reading distance: 6cm

Data storage time: minimum 10 years

Operating temperature: -20 to +60°C

Stockage temperature: -20 to +65°C

Package: 200pcs per Inner Box; 4000pcs per Carton, each Carton gross weight is 28kgs

Printing options

Full color offset printing

Silk-screen printing

Silver/Gold silk-screen printing background

Personalization

Options for standart card

Magnetic stripe: 300oe, 2750oe, 4000oe

Numbering

Barcode printing

Signature panel

Embossing

Encoding (according agreement)
