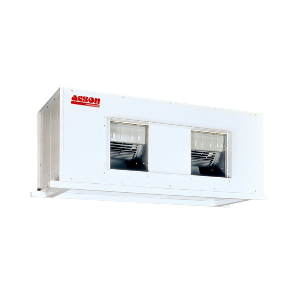

Air Conditioner - Ducted Blower

The Acson Ducted Blower allows for air to be supplied into the room without motor noise, providing a super silent condition for better living.

QUICK FACTS ON PRODUCTS

Models (Indoor): ADB40B, ADB50B, ADB60B, ADB80B, ADB100B, ADB125B, ADB150B1, ADB150B2, ADB200B2, ADB250B2, ADB300B2, ADB300B3, ADB350B3, ADB400B4, ADB450B3, ADB500B4, ADB500B4, ADB600B4, ADB750B5

Models (Outdoor): ALC35C, ALC40C, ALC50C, ALC61C, AMC72C, AMC80C, AMC100B, AMC125B, AMC150C

Cooling Capacity(Btu/h): 35,000-750,000 Btu/h

Refrigerant: R22

FEATURES

EASY MAINTENANCE
The simple design concept has provided the ease of maintenance and servicing. Access to the internal part of the unit can be from the service panel or other side of the unit by loosening a few screws.

AIR DISCHARGE ORIENTATION
ADB200B model come with standard horizontal air discharge. ADB250-500B models only come with standard vertical air discharge and they can be converted to horizontal air discharge at the site. ADB250-500B models with horizontal air discharge are not offered from factory. ADB600-750B models are offered in vertical and horizontal air discharge as standard by differentiate of nomenclature.

COMPACT INDOOR UNIT
Indoor models are designed with compact size with twin coil structure. This design is able to provide some saving in space for installation.

VERSATILITY
Multiple rooms can be cooled together at the same time by using just one unit of fan coil unit.

FRESH AIR INTAKE FOR HEALTHY LIVING
The conditioned air can be effectively distributed to every corner of the room through the ducting and this ensure a more pleasant environment for comfort living.

FLEXIBILITY OF AIR SUPPLY
ADB200-750B models using belt driven blower such as that the air volume and static required can be adjusted according to the requirement. This flexibility allows for wider application.

SCROLL COMPRESSOR
All outdoor units are using Scroll compressor which has better energy efficiency and quiet in operation.

SEQUENTIAL CONTROLLER AS STANDARD
This controller is supplied as the standard specification for cooling model where the systems are matching with two outdoor units and more. The benefit of this controller is capable of part-loading of the system capacity.
