MCB´s protect installations against overload and short-circuit, warranting reliability and safety for operations.
New System pro M compact S 200 series satisfies most common requirements in terms of MCB´s, allowing the usage of them for domestic, industrial and commercial applications. All the MCB´s comply to IEC/EN 60898 and IEC/EN 60947-2 Standards.
Miniature circuit breakers (MCBs)
- For domestic/residential installations in emerging markets: typical breaking capacities 3 / 4,5 / 6 kA
- Compact Home SH 200 T, SH 200 L, SH 200
- For domestic or small commercial installations: up to 10 kA breaking capacity
- specials S440, S950/970
- proM compact S200, S200 M
- For industrial installations up to 25 kA breaking capacity and specials
- proM compact S200, S200M, S200P, S200U, S200UP
- specials S280UC, S290
- Special, selective, back-up MCB’s for for utilities, with high breaking capacity (25 kA) and full selectivity to downstream breakers, range S 700
- For commercial and industrial applications with high breaking capacities and special features / accessories, ranges S200P, 290, S500, S610, S220, S800

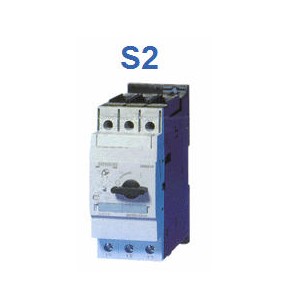

Miniature Circuit Breaker S2
|
Three - Phase motor *) |
Setting Range (A) Class 10 |
Order No. |
|
| Output (kW) |
Current (A) |
||
| 15 | 29 | 22 - 32 | 3RV1031-4EA10 |
| 18.5 | 35 | 28 - 40 | 3RV1031-4FA10 |
| 22 | 41 | 40 - 50 | 3RV1031-4HA10 |
