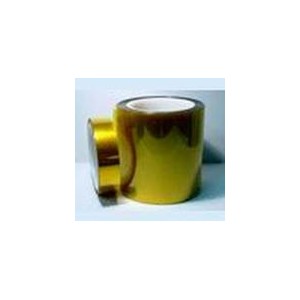

Polyimide Tape(Kapton tape)
● All these below mentioned tape can be supplied with release film.
● All below mentioned techniques are the average values obtained after our several testing by acknowledged and reliable testing methods. In order to ensure the correct selection and using of our products, pls make sure a thorough understanding both of the purposes and conditions on usage in advance, or notify us so as to provide you with further explanation and service.
● Special spec. may be made according to buyer’s special requirements.
|
Specification
|
1mil tape
|
2mil tape
|
3mil tape
|
|
Backing
|
Polyimide film
|
Polyimide film
|
Polyimide film
|
|
Adhesive
|
silicone
|
silicone
|
silicone
|
|
Backing film thickness(mm)
|
0.025
|
0.05
|
0.075
|
|
Total thickness (mm)
|
0.060±0.002
|
0.085±0.002
|
0.125±0.002
|
|
Length(m)
|
33
|
33
|
33
|
|
Width(mm)
|
Within 500mm
|
Within 500mm
|
Within 500mm
|
|
Tensile strength(Mpa)
|
≥140
|
≥140
|
≥160
|
|
Stretch rate of break(%)
|
≥40
|
≥40
|
≥60
|
|
Puncture strength(MV/m)
|
≥150
|
≥150
|
≥200
|
|
Surface resistivity(Ω)
|
≥1.0*1013
|
≥1.0*1013
|
≥6.0*1015
|
|
Voltage resistance(KV)
|
6
|
7
|
10
|
|
Peel force(Kg/25mm)
|
0.7
|
0.65
|
0.65
|
|
Temperature resistance(℃)
|
260
|
260
|
260
|
