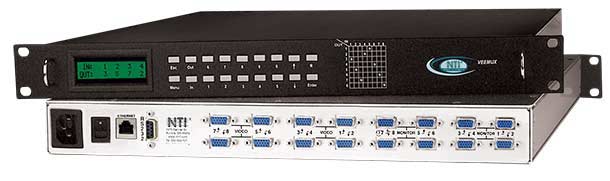

The VEEMUX® DVI Video Matrix Switch routes video from up to 32 single
- Configure and control the switch through Ethernet, serial port, front panel buttons, or optional IR remote.
- Supports DVI-D interface for crisp and clear video quality on flat panel displays.
- Available with optional stereo audio.
- Supports HDTV resolutions up to 1080p and computer resolutions up to 1920x1200 (WUXGA).
- Meets the electrostatic discharge (ESD) immunity requirements of IEC/EN 61000-4-2.
- Each output provides one video signal and one stereo audio signal
(with audio option). - Each input can be independently connected to any or all outputs.
- HDCP is supported when connecting any one input to any one output
(8x8 models only). - HDCP is not supported when connecting one input to multiple outputs.
- HDCP is supported when connecting any one input to any one output
- EDID learning for the support of any DVI display device.
- Built-in default EDID configuration tables for both PC and MAC.
- Dual default EDID configuration tables: high resolution without audio and TV resolution with audio.
