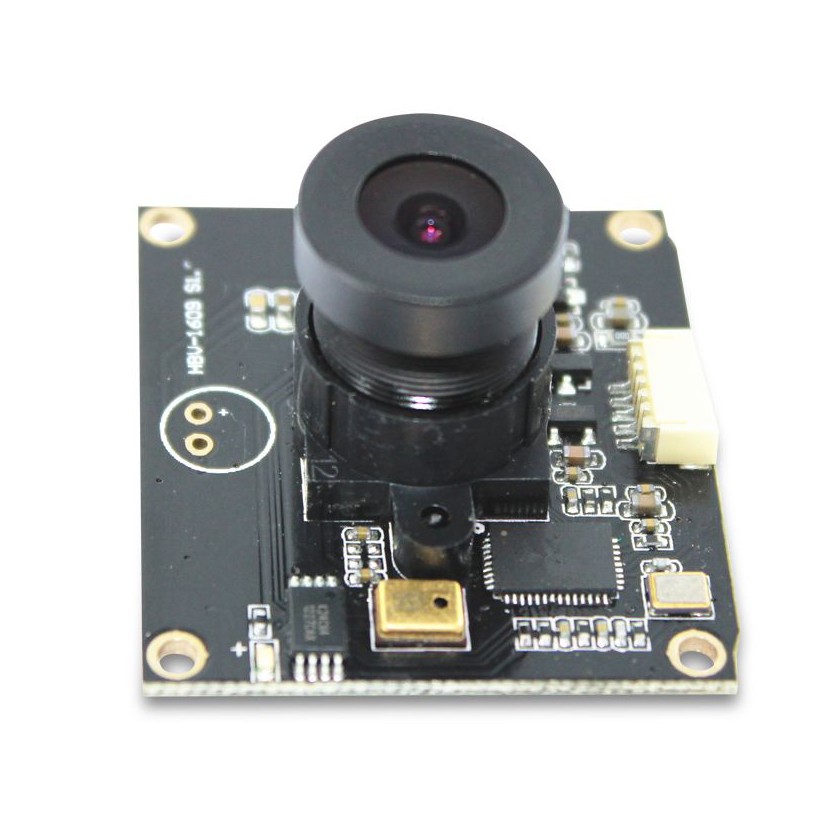

Free driver USB2.0 OV2643 android mini camera module built in microphone
Product Description
Model No. | HBVCAM-1609 S1.0 |
Model Size | 35mm × 31.5mm × 18.5mm±0.5MM |
Temperature (Operation) | -30°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROSH) |
Focus | Fixed |
Object distance | 30CM-infinity |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power supply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 400 mW |
Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linuxwith uvc |
Sensor | OV2643 (1/4” ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 1600*1200 |
Sensitivity | 1250mv /(lux-sec) |
Pixel Size | 2.2μm x 2.2μm |
Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 30FPS |
2Mega Pixel USB Cameras typically feature autofocus and manual focus options, higher sensitivity to low-light conditions, and image processing capabilities. They are compatible with various operating systems and can be used with popular video conferencing software such as Zoom, Skype, and Microsoft Teams.
HUIBER, a professional camera module manufacturer and supplier, offers a range of 2Mega Pixel USB Cameras with various features and benefits to cater to different needs. These cameras can be used in industries such as education, healthcare, and broadcasting, as well as for personal projects such as video blogging and photography.
