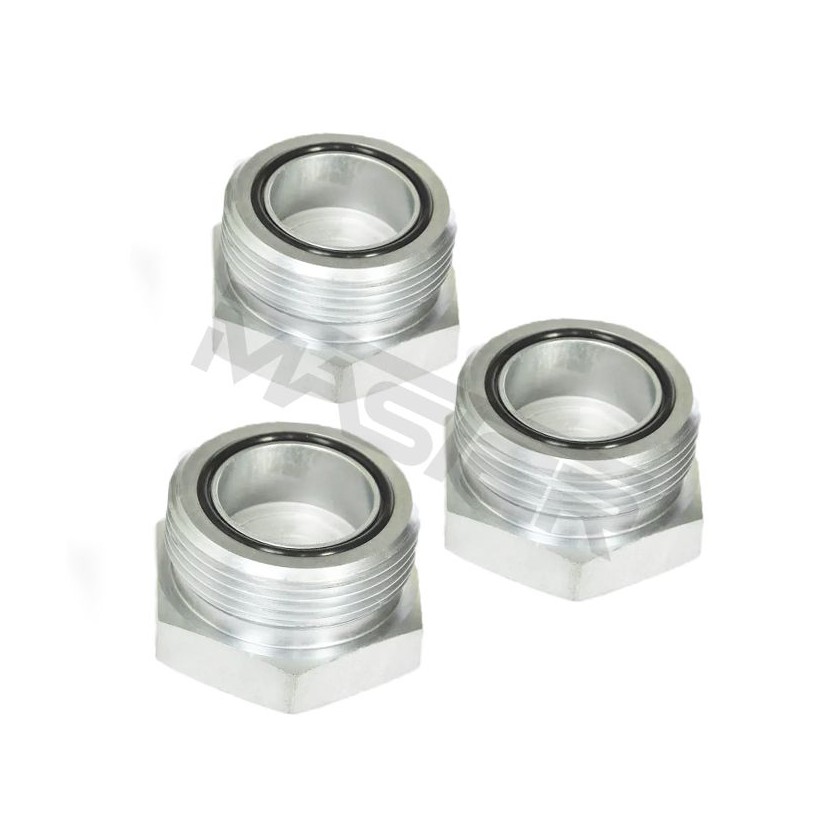

The 4E male metric hydraulic plug is engineered to fit precisely into a port or opening with a specific metric thread size. It features an O-ring seal that ensures a tight, leak-free connection under fluid pressure, offering enhanced protection against leakage in hydraulic systems.
Product Parameter
PART NO. | THREAD | O-RING | DIMENSIONS | ||
E | E END | A | L | S1 | |
4E-14 | M14X1.5 | 10X1.9 | 11 | 17 | 17 |
4E-16 | M16X1.5 | 11X1.9 | 11 | 17 | 17 |
4E-18 | M18X1.5 | 13X1.9 | 11 | 17 | 19 |
4E-22 | M22X1.5 | 16X2.4 | 12 | 20 | 24 |
4E-27 | M27X1.5 | 20X2.4 | 13 | 23 | 30 |
4E-30 | M30X1.5 | 24X2.4 | 14 | 25 | 32 |
4E-36 | M36X2 | 30X3.1 | 16 | 29 | 38 |
4E-39 | M39X2 | 32X3.1 | 18 | 31 | 41 |
4E-42 | M42X2 | 35X3.1 | 20 | 33 | 46 |
4E-45 | M45X2 | 38X3.1 | 21 | 34 | 46 |
4E-52 | M52X2 | 40X3.1 | 22 | 37 | 55 |
4E-60 | M60X2 | 45X3.1 | 24 | 41 | 65 |
As a professional metric pipe plug manufacturer, MASTER is committed to delivering durable, high-performance pipe plugs with excellent customer service. Contact us today for quotes, samples, or custom solutions.
