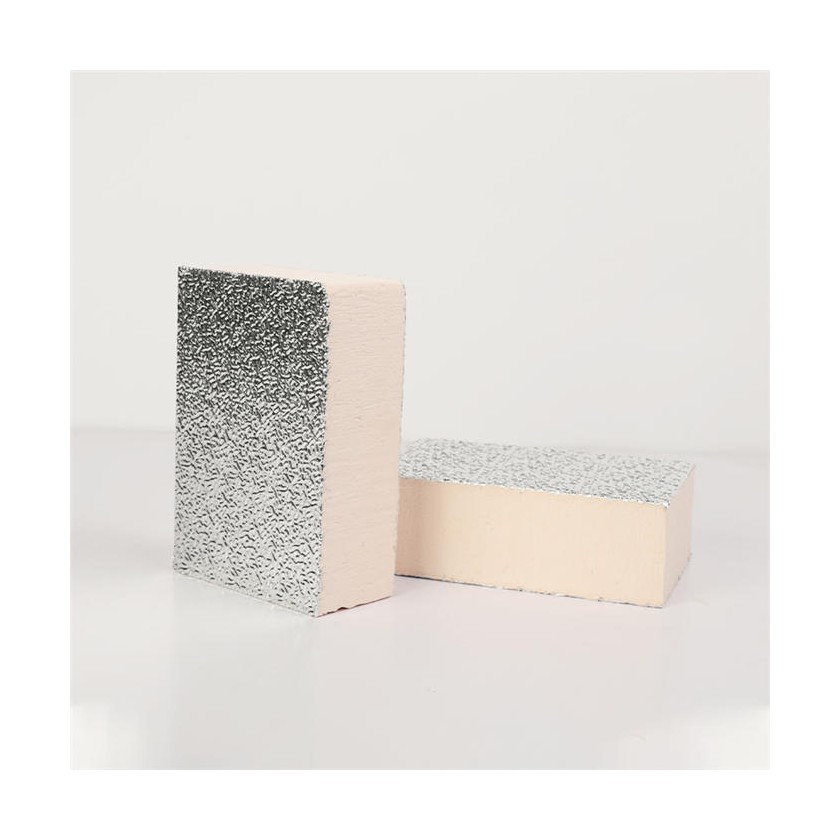

Our SQ PF Board represents the next generation of rigid foam insulation, engineered to deliver unmatched thermal efficiency with a 0.020-0.022 W/m·K conductivity rating - outperforming conventional EPS/XPS boards by 50-100% in R-value. This foil-faced insulation solution combines cutting-edge polymer technology with stringent fire safety compliance, making it ideal for commercial and residential applications where energy conservation and passive fire protection are paramount.
Key Technical Advantages
Ultra-Low Thermal Conductivity (0.020 W/m·K) for maximum heat retention
Class A1 Fire Rating with minimal toxic gas emission (meets EN 13501-1 standards)
Closed-cell structure achieves
Dimensionally stable (±0.1% size variation under thermal cycling)
Freon-free manufacturing with 100% ozone-friendly blowing agents
Specifications
Parameter | Value |
Thickness Range | 20-250mm (customizable in 10mm increments) |
Standard Width | 600/900/1000/1200mm |
Compressive Strength | ≥50psi (344kPa) |
Tensile Strength | ≥25psi (172kPa) |
Service Temperature | -180°C to +120°C |
For more information about exterior phenolic insulation boards or to obtain samples, please contact Shengquan sales team. We provide professional technical consultation and customized solutions.
