The SPC-01 Stretch Film Peeling Cling Tester measures the adhesion between two layers of stretch film, helping assess the stretch wrap material's ability to adhere effectively. The SPC-01 Peel Cling Tester stands as a reliable and indispensable tool in the materials testing, providing precise measurements that contribute to the enhancement of product quality and safety across diverse sectors.
Advantages of SPC-01 Stretch Film Peel Cling Tester
7-inch TFT touch screen for user-friendly operation (Human-Machine Interface).
Internal PLC control unit for reliable performance.
Precision ball screw ensures accurate speed and displacement.
Adjustable test speed.
Different load cell connections with the sample eliminate interference typically caused by friction and gravity from pulleys and strings used in traditional testing methods.
Equipped with a limiting device and automatic return function.
Real-time display of the test curve and peak value recording.
Supports elongation rates of 50%, 100%, and 200%.
Includes an embedded micro printer.
Addition of a coefficient of friction function is optional.

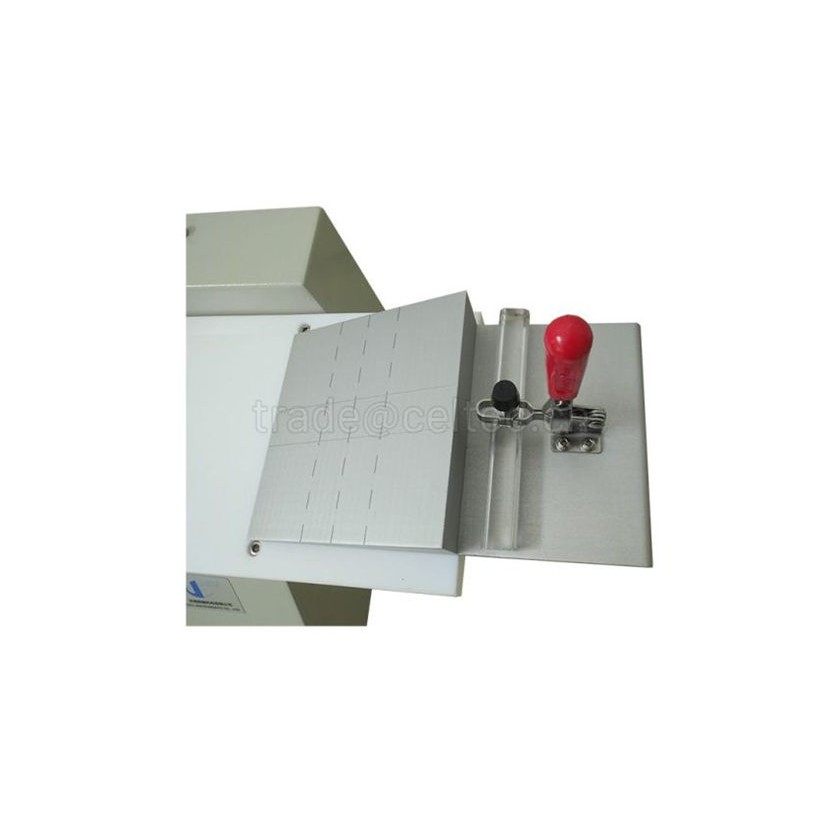

To test peel cling, two sample types are prepared. The first, a larger piece, serves as the substrate or backing, while the second, a smaller strip, driven the SPC-01 moving jaw, is peeled from the larger sample. The peeling force is recorded. This test evaluates the film's adhesion performance effectively.
Specifications
Test Range | 5N (Standard) |
Stroke | 199mm |
Test Speed | 125mm/min |
Displacement Accuracy | 0.01mm |
Force Accuracy | 0.5% F.S. |
Control | PLC and HMI touch screen |
Data Output | Screen, Micro printer, RS232(optional) |
Power Supply | 110~220V, 50/60Hz |
Standards:
ASTM D5458 Standard Test Method for Peel Cling of Stretch Wrap
For more details please contact Cell Instruments
