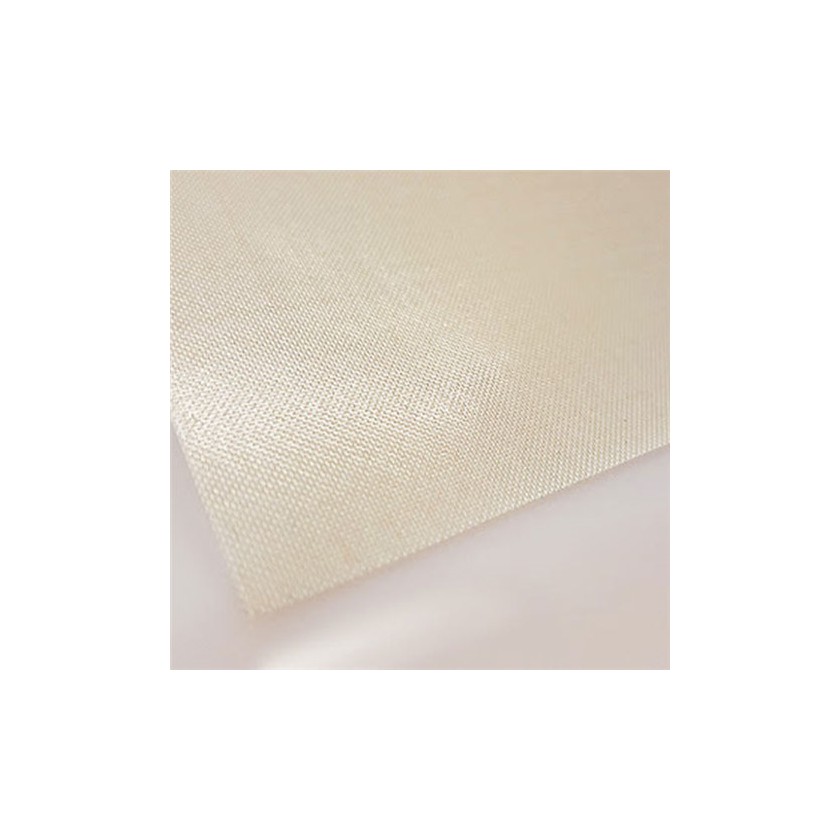

Our PTFE Coated Aramid Fabric are manufactured from woven Kevlar substrates that have been coated with PTFE. This fabric has a very high tensile and tear strength,and it bends better than the standard glass fabrics,therefore,this fabrics is recommended for use in moist and/or steam environments.PTFE fiberglass coating Kevlar fabrics mainly used in conveyor belt applications and is particularly suitable as an edge reinforcement material.Our PTFE Kevlar fabrics are available in different thicknesses of .005″, .007″, .010″, .014″ & .017″and up to 2200 mm width.
Feature:
Food Approval (FDA)
Heat and cold resistance: Minus -73° C to + 260° C
Low Thermal Expansion:〈5%
Lightweight and energy efficient for economical operation
Chemical inertness: afftected only by a few rare substances at very high temperatures
Chemical corrosion and moisture resistance
Non combustible – self extingushing
Ultra-violet,Infra-Red,Micro-Wave,Radio Frequency resistance
Mildew and fungus resistance
Low friction co-efficient
Easy cleaning – Nothing bonds permanently
PTFE Coated Kevlar Fabrics | ||||
Model | Standard Width | Total Thickness (mm) | Weight | Tensiles |
(mm) | (g/m2) | (N/5cm) | ||
K9013 | 1000-1250 | 0.13 | 185 | 2000 |
K9013 AS | 1000-1250 | 0.13 | 185 | 2000 |
K9018 | 1000-1250 | 0.165 | 260 | 2600 |
K9025 | 1000-1250 | 0.22 | 350 | 2700 |
K9045 | 1000-2200 | 0.43 | 680 | 3800 |
K9045 AS | 1000-2200 | 0.43 | 680 | 3800 |
PTFE coated fiberglass fabric from VICHEN delivers unmatched durability and performance in the harshest conditions. As a leading silicone and PTFE fabric manufacturer, JVC combines decades of experience with stringent quality control, ensuring every roll of silicone and PTFE coated fiberglass material meets industrial standards for temperature, chemical, and mechanical resistance.
