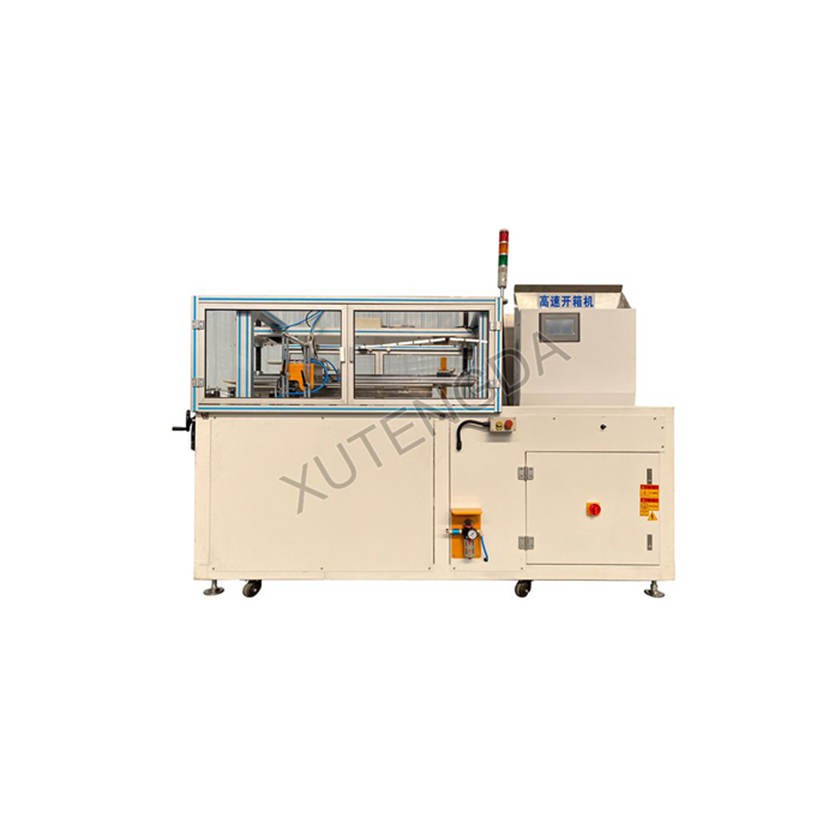

It is a kind of horizontal box forming machine. The storage of the boxes adopt horizontal mode, refill the box at any time without stop the machine. Different size boxes are operated by hand handle and adjusted quickly and easily. This kind equipment is widely used in dairy, food, medical, beverage, tobacco, daily-chemical, electrical and other industries.
Main Technical Specification:
Type | XPK-25 |
The range of the box size | L250-450 *W150-350*H150-350MM |
Applicable adhesive tape | W: 48/60/72mm*900 yard/L OPP(choose one type） |
Voltage & Frequency | 380V、50HZ |
Power | 1000W |
Box forming speed | 20-25boxes/min |
The table height | 960mm |
Air pressure/Air consumption | 6kg.f/cm 500nl/min |
The storage of the box | 70-100pcs（depending on carton thickness） |
Size | L2268*W1330*H1700mm |
Weight | 1000kg |
We offer a wide range of carton forming equipment that can be customized to suit your application. Xutengda is a leading packaging equipment supplier. We provide customers with all types of carton forming machines. If you need advice or more information about a specific product, please feel free to contact us
