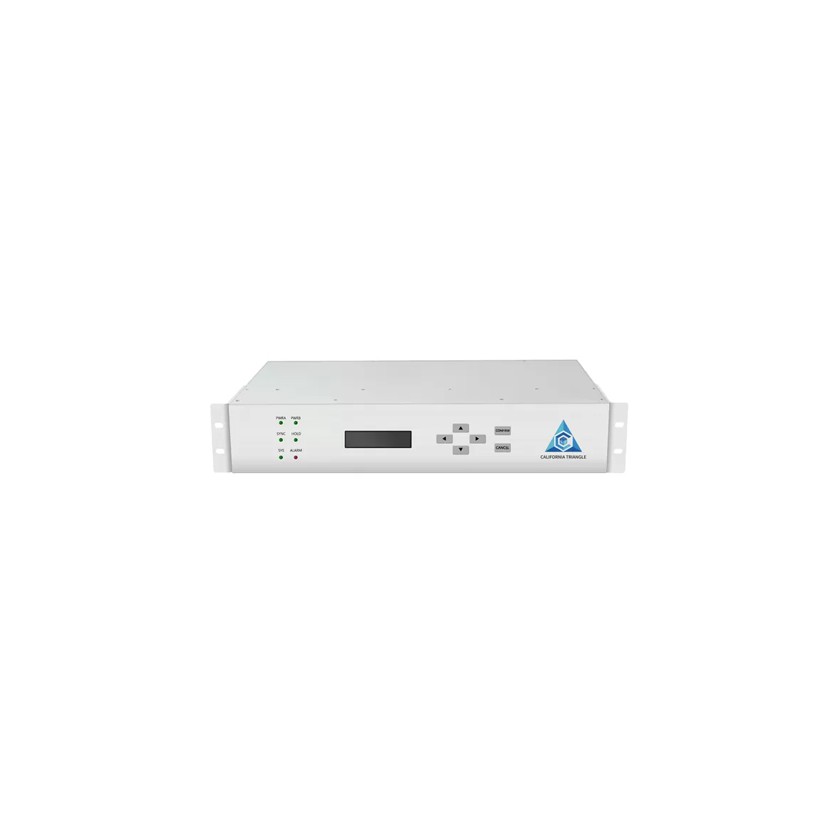

The CT2500 is a high-performance IEEE 1588 time server developed for the high-precision time requirements in various industries, it can be used as a small BITS. It meets the high precision time requirement from various industries, the time accuracy can reach +/-30ns. Full redundant design ensures the safety and reliability of products. The new design meets the EMC and RoHS environmental safety requirements.
BITS Synchronization Platform Advantages
19-inch,1U or 2U design.
Supporting hot-swap and expansion chassis; Fully redundant design with high robust.
Providing 7 day * 24 hours uninterrupted service.
Enriched LCD status display.
Support centralized monitoring and management by remote NMS via Ethernet
-48V DC or 220V AC Power Supply Redundancy
Rubidium or high stability OCXO configurable.
Support PTP, NTP, SyncE, 1PPS, 1PPS+TOD, IRIG-B, 10Mhz, 2Mhz, 2Mb output.
Each PTP port support 512 PTP clients at 128PPS, Each card include 4 PTP port, support 2048 PTP clients at 128PPS;
Support IEEE 1588v2 default profile, ITU-T G.8275.1, G.8275.2, G.8265.1, G.8273.2 profile.
Single NTP port capacity: 500 transactions per second for SW NTP; 90000 transactions per second for HW NTP.
NTP/PTP support IPv4 and IPv6;
Fan card mounted for cooling, 1 fan card for 1U variant, 1~2 fan card for 2U variant.
