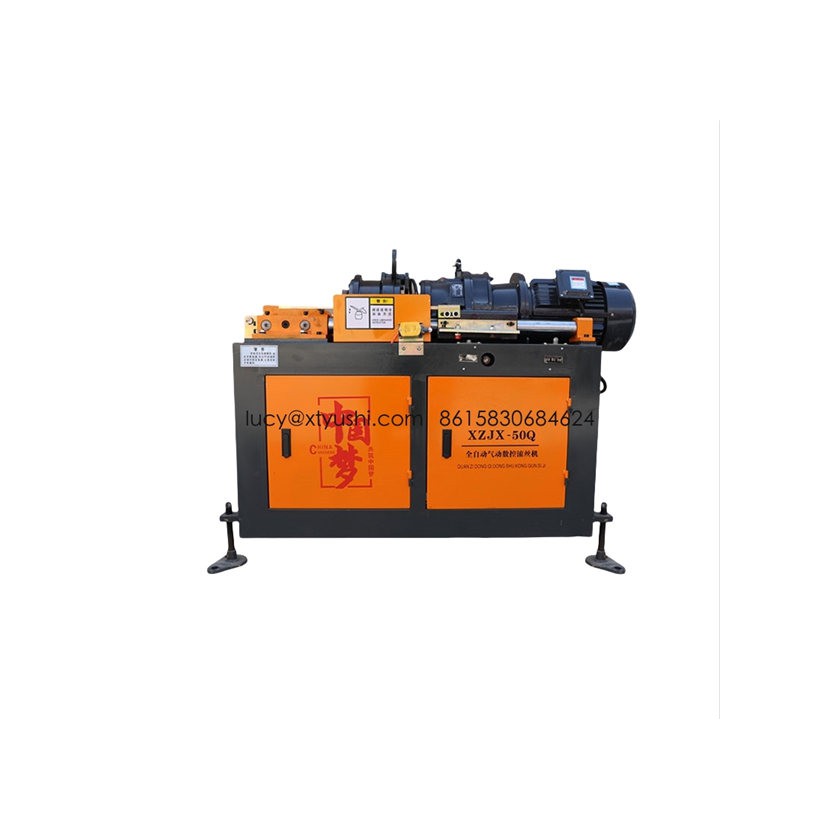

A Steel Rod Threading Machine works through a mechanical process combining rotation and pressing. Powered by a motor, the machine drives a threading tool or roller at high speed while firmly holding the steel rod in place. This process forms continuous threads on the steel rod's surface, which can then be connected using threaded steel sleeves for reliable and robust connections.
To ensure optimal performance, a Steel Rod Threading Machine is equipped with high-quality components, including:
Motor: Supplies power for threading operations.
Reducer: Regulates speed and torque for smooth functioning.
Rollers and Guide Plates: Maintain stability and threading precision.
Processing Tools: Responsible for cutting threads on steel rods.
Control System: Enables users to monitor and adjust parameters efficiently.
A robust machine ensures smooth operation, long-term durability, and high performance in various threading applications.
Production Name | thread stripping rib rolling machine |
Machine weight | 700kg |
Spindle speed | 762/min |
processing range | 16-40mm |
thread roller | Divided rounds |
Standard frequency | 60Hz |
production dimension | 1900*800*1000mm |
Motor power | 7.5kw |
Voltage | 220V |
Oil pump motor | 2.2KW |
thread length | 200MM |
Head configuration | Lengthen head |
