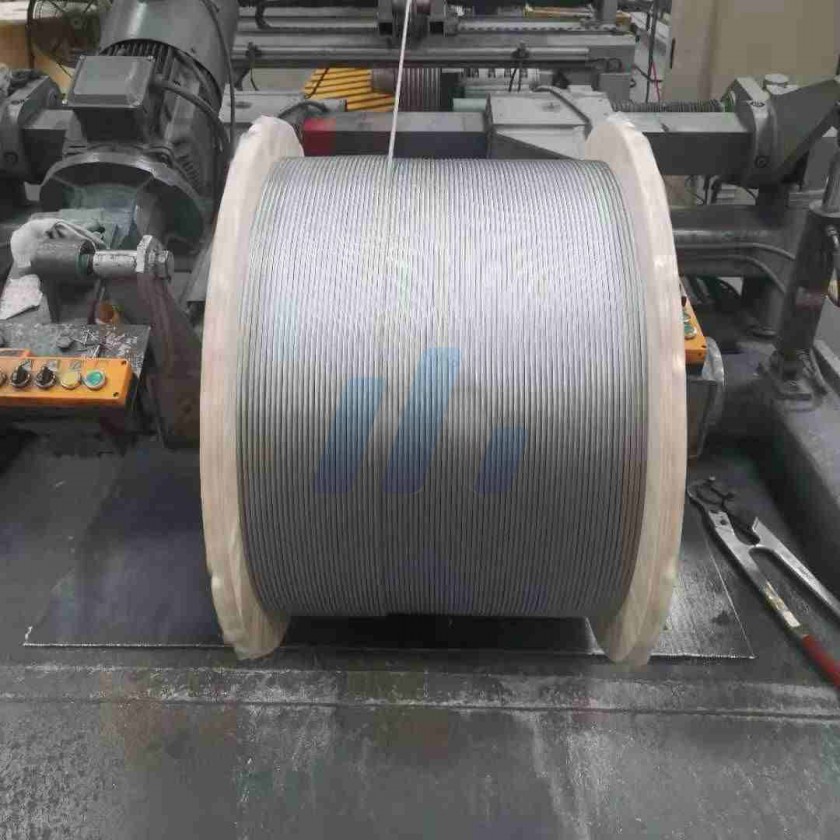

Steel wire rope is made of high quality carbon steel wire rod,process by FIB lead bath heat treatment and hot-dipped galvanizing integrated production line,with high degree of soxaustenitizing,uniform thickness of zinc layer,high fatigue performance of steel wire,long service life of steel wire rope,which meets the working requirements of small crane.
The Steel Wire Rope For Small Crane characteristics are mainly shown as follows:
High breaking force,high safety facor of equipment.
Good corrosion resistance,not easy to produce rust.
High fatigue life,good use of wire rope
Special process such as co,paction,injection molding,and parallel twisting can be used
Multi-strand rope has excellent anti-rotation performance.
Diameter (mm) | Reference weight (kg/100m) | GB/T 8918 The national standard | ||||||
Min.Breaking Load KN | ||||||||
1770MPA | 1960MPA | 2160MPA | ||||||
Fiber Core | Steel Core | Fiber Core | Steel Core | Fiber Core | Steel Core | Fiber Core | Steel Core | |
5.0 | 9.3 | 10.5 | 14.6 | 15.8 | 16.2 | 17.4 | 17.8 | 19.2 |
6.0 | 13.4 | 15.0 | 21.0 | 22.7 | 23.3 | 25.1 | 25.7 | 27.7 |
7.0 | 18.2 | 20.5 | 28.6 | 30.9 | 31.7 | 34.2 | 34.9 | 37.7 |
8.0 | 23.7 | 26.8 | 37.4 | 40.3 | 41.4 | 44.7 | 45.6 | 49.2 |
8.3 | 25.6 | 28.8 | 40.2 | 43.4 | 44.6 | 48.1 | 49.1 | 53.0 |
9.0 | 30.1 | 33.9 | 47.3 | 51.0 | 52.4 | 56.5 | 57.7 | 62.3 |
9.5 | 33.5 | 37.7 | 52.7 | 56.9 | 58.4 | 63.0 | 64.3 | 69.4 |
10.0 | 37.1 | 41.8 | 58.4 | 63.0 | 64.7 | 69.8 | 71.3 | 76.9 |
11.0 | 44.9 | 50.6 | 70.7 | 76.2 | 78.3 | 84.4 | 86.2 | 93.0 |
12.0 | 53.4 | 60.2 | 84.1 | 90.7 | 93.1 | 100.5 | 102.6 | 110.7 |
13.0 | 64.2 | 70.6 | 98.7 | 106.5 | 109.3 | 117.9 | 120.5 | 130.0 |
14.0 | 74.5 | 81.9 | 114.5 | 123.5 | 126.8 | 136.8 | 139.7 | 150.7 |
15.0 | 85.5 | 94.1 | 131.4 | 141.8 | 145.5 | 157.0 | 160.4 | 173.0 |
16.0 | 97.3 | 107.0 | 149.5 | 161.3 | 165.6 | 178.6 | 182.5 | 196.9 |
17.0 | 109.8 | 120.8 | 168.8 | 182.1 | 186.9 | 201.7 | 206.0 | 222.2 |
18.0 | 123.1 | 135.4 | 189.2 | 204.2 | 209.6 | 226.1 | 230.9 | 249.1 |
19.0 | 137.2 | 150.9 | 210.9 | 227.5 | 233.5 | 251.9 | 257.3 | 277.6 |
20.0 | 152.0 | 167.2 | 233.6 | 252.0 | 258.7 | 279.1 | 285.1 | 307.6 |
More details please contact Nanjing Suntay Steel
