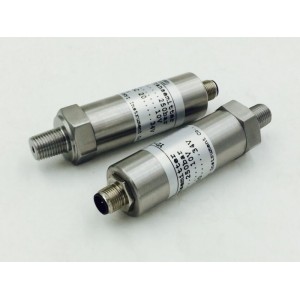

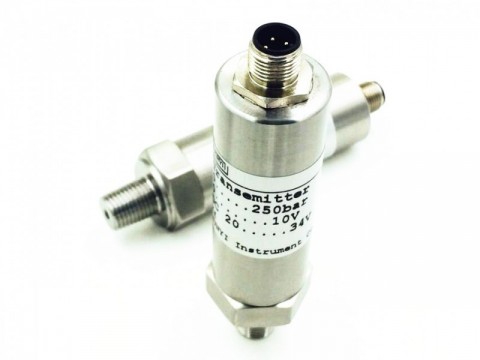

Accuracy: 0.2
Load capacity: ≤800 Ω (24V powered)
Power: 20-34V
Long-term stability: ± 0.1% F · S / year
Temperature drift: ± 0.01% F · S / ℃
The maximum overload: two times the standard range
Power: 20-34V
Long-term stability: ± 0.1% F · S / year
Temperature drift: ± 0.01% F · S / ℃
The maximum overload: two times the standard range
Power supply: 0-10v
Electrical connection: three-wire
Response time: ≤1 ms
Insulation resistance: 100MΩ, 100VDC
Overload: 5 times full scale pressure
Position Effect: None
Vibration floor: no change in 10gRMS, 20 ~ 2000Hz conditions
Medium temperature: -40 ~ 85 ℃
Ambient temperature: -40 ~ 85 ℃
Ambient Humidity: 85 ℃, 90% -95% R.H.
Environmental pressure: 86 ~ 106Kpa
Electromagnetic interference: 80MHz ~ 1GHz
Explosion properties: intrinsically safe
Electrical connection: three-wire
Response time: ≤1 ms
Insulation resistance: 100MΩ, 100VDC
Overload: 5 times full scale pressure
Position Effect: None
Vibration floor: no change in 10gRMS, 20 ~ 2000Hz conditions
Medium temperature: -40 ~ 85 ℃
Ambient temperature: -40 ~ 85 ℃
Ambient Humidity: 85 ℃, 90% -95% R.H.
Environmental pressure: 86 ~ 106Kpa
Electromagnetic interference: 80MHz ~ 1GHz
Explosion properties: intrinsically safe
The standard pressure interface: M20 * 1.5, M18 * 1.5, M16 * 1.5, M16 * 1, M14 * 1.5, M12 * 1.5, M12 * 1.25, M12 * 1, M10 * 1 M8 * 1, M6 * 1 G1 / 2 (4 points), G1 / 4 (2 points), G1 / 8 (1 point), G3 / 8 (3 points) G3 / 4 (6 points), 1 / 4NPT, 1 / 2NPT, 1 / 8NPT, ZG1 / 4 (R1 / 4)
Non-standard customized according to customer requirements
Electrical connection: three-pin terminal (Industrial), Hirschmann plug (standard).
Non-standard customized according to customer requirements
Electrical connection: three-pin terminal (Industrial), Hirschmann plug (standard).
Selection Table of of 4 pin aviation connector pressure transmitter :
| Value | unite | |
| range | -0.1,0.1,0.2,0.6,1.0,1.6,2.0,4.0,4.5,6.0,10,20,35,50,80,100(or customed) | Mpa |
| accuracy | ±0.1,±0.25,±0.50 | %F.S |
| output | 4~20( or customed ) | mA |
| 0~5,1~5,0~10( or customed ) | V | |
| Compensation temperature scope | -25~80( maximum :-45~155) | ℃ |
| operating temperature range | -25~150 | ℃ |
| operating temperature range | ±0.1 | %F.S year |
Temperature performance of of 4 pin aviation connector pressure transmitter
| minimum value | typical value | maximum value | |
| Zero temperature drift | -0.75%F.S | 0.2%F.S | +0.75%F.S |
| The sensitivity temperature drift | -0.75%F.S | -0.2%F.S | +0.75%F.S |
Note: 1 including hysteresis, repeatability and non-linearity.
2 outside the compensated temperature range performance has declined]
